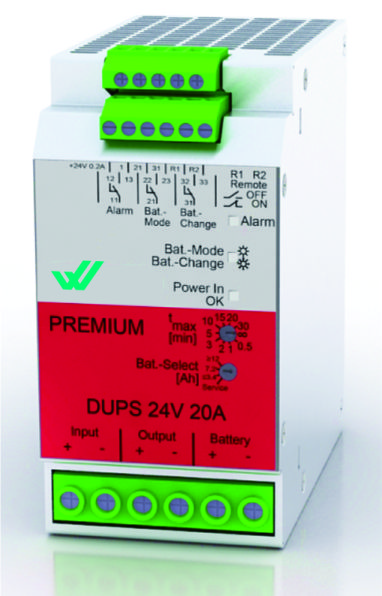

WAT-0103-03
description:DUPS 24DC/24DC 20A

efficiency:>98%
temperature:–25 °C to 70 °C
output:Depend on battery voltage (27.9--19.2 VDC)
input:22.5---30VDC
PRODUCT FEATURES
PRODUCT FEATURES

Compensated charging feature for a long  battery life

DC DC Uninterrupted power supply (UPS)  with external lead acid battery from 3.4Ah to 12 Ah

TECHNICAL DATA
TECHNICAL DATA
Model WAT-0103-08
Type  Premium DUPS 24DC/24DC 20A
Input voltage range

 22.5 ..... 30V DC

Rated output voltage   24 VDC (Vo=Vin -0.5V)
Efficiency >98%
Output voltage, Battery operation

Depends on battery voltage (27.9 ...19.2VDC)

Rated Output current 20A
Battery type in Ah selective switch 3.4 / 7.2 / 12 / severice
Discharge times selective switch ( in Minutes) 0.5 / 1/ 3 / 5 / 10/ 20 / 30 / ∞
Operation temperature range -25°C  to 70°C (>55°C derating 2.5% / K)
Dimensions ( D x Wx H ) 125x 66 x 130mm
Approvals EN62368, UL508, CE, CB, EX
MTBF(40deg C) >500,000 hrs
Weight 0.8kg

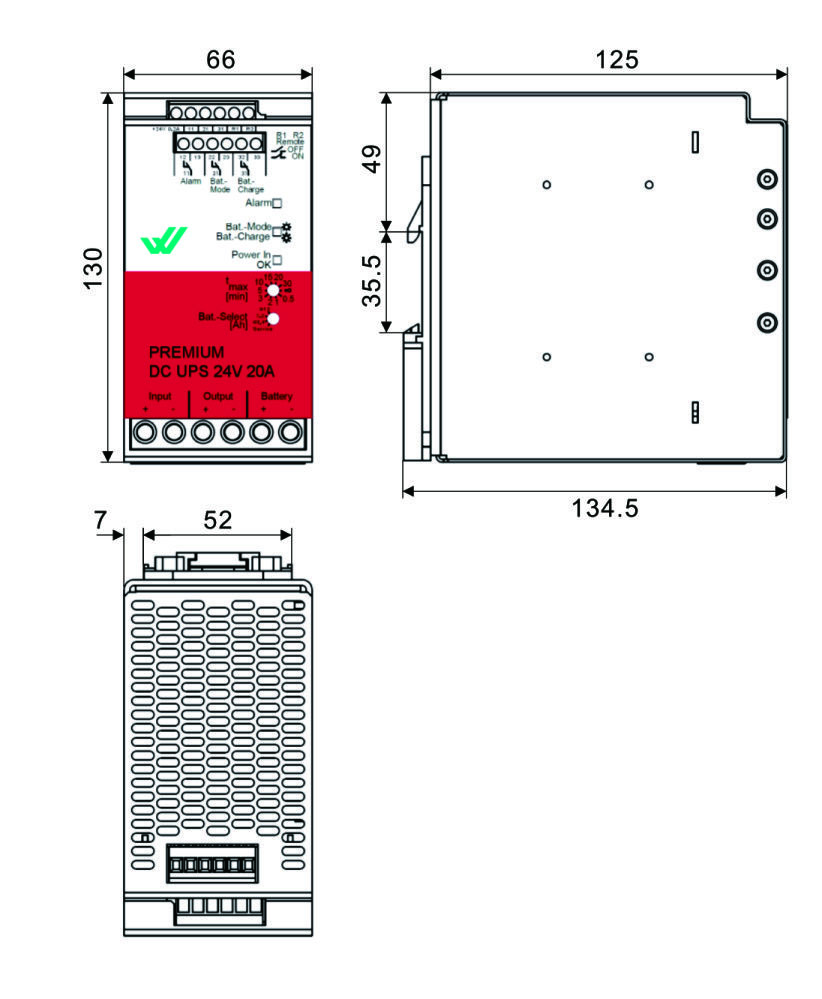

DIMENSIONS
DIMENSIONS
