Product
WAT-0103-08
description：Premium DUPS 24DC/24DC 40A
efficiency：>98%
temperature：–25 °C to 70 °C
PRODUCT FEATURES
PRODUCT FEATURES
Compensated charging feature for a long battery life
DC DC Uninterrupted power supply (UPS) with external lead acid battery from 7.2Ah to 17 Ah
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0103-08 |
| Type | Premium DUPS 24DC/24DC 40A |
| Input voltage range |
22.5 ..... 30V DC |
| Rated output voltage | 24 VDC |
| Efficiency | >98% |
| Output voltage, Battery operation | Depends on battery voltage (27.9 ...19.2VDC) |
| Rated Output current | 40A |
| Battery type in Ah selective switch | 7.2 / 12 / 17 / severice |
| Discharge times selective switch ( in Minutes) | 0.5 / 1/ 3 / 5 / 10/ 20 / 30 / ∞ |
| Operation temperature range | -25°C to 70°C |
| Dimensions ( D x Wx H ) | 125x 66 x 130mm |
| Approvals | EN62368, UL508, CE, CB |
| MTBF(40deg C) | >500,000 hrs |
| Weight | 0.9kg |

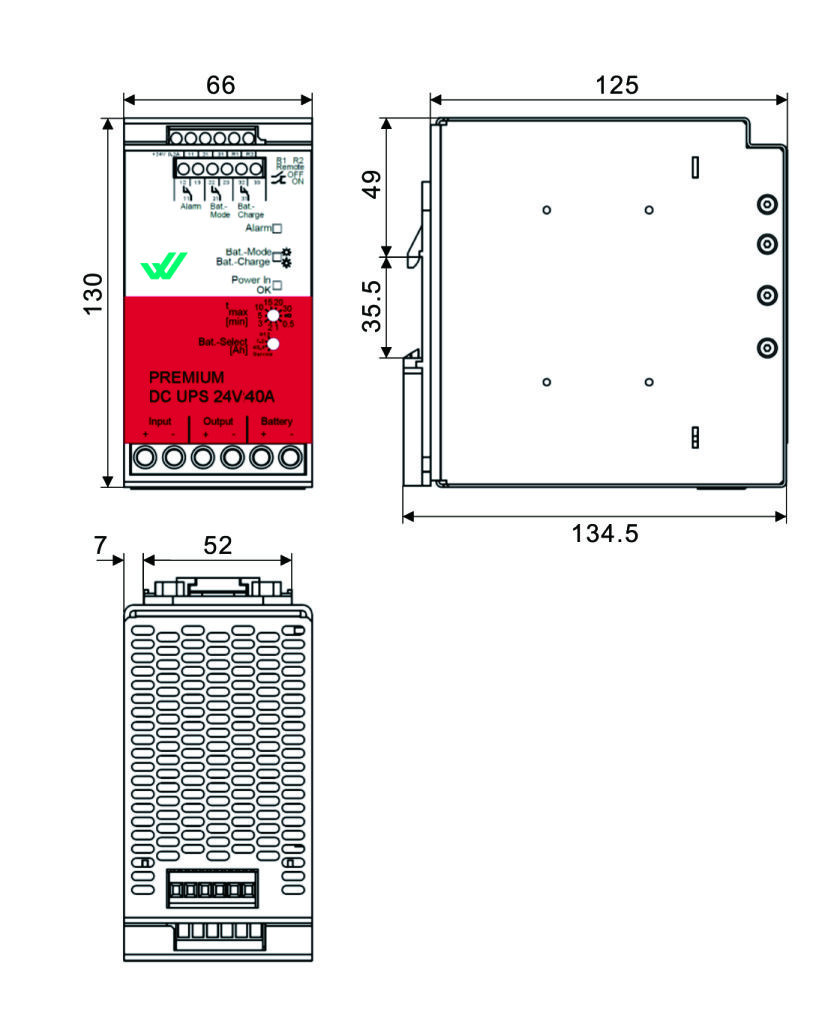

DIMENSIONS
DIMENSIONS
