Product

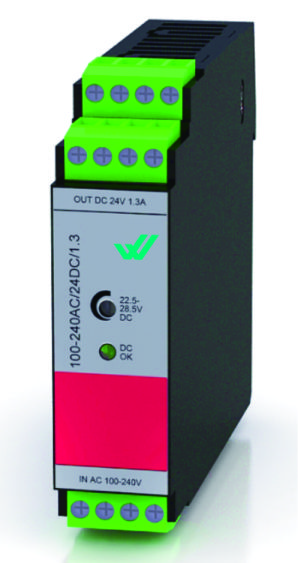

WAT-0009-01
description：1AC 24DC 1.3A
efficiency：＞85%
temperature：–25 °C to 70 °C
output：20-28.5Vdc
input：85Vac-264Vac
PRODUCT FEATURES
PRODUCT FEATURES
单相开关电源
效率大于85%
温度范围-25°C到70°C
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0009-01 |
| 规格 | 1AC/24DC/1.3A |
| 输入电压 |
Rated:100Vac-240Vac Range:85Vac-264Vac (＜90Vac Derating 2.5%/V) |
| 输入频率 | 45-65Hz |
| 待机功率 | <4W |
| 效率 | >85% |
| 输出电压 | 20-28.5 Vdc (adjustable)>24V Constant Power |
| 输出电流 | 1.3A |
| 输出功率 | 31.2W |
| 信号指示 | Power OK LED |
| 环境温度 | -25°C to 70°C (>60° C derating 2.5% k) |
| 尺寸 (深 x 宽 x H高) | 108.2x 24x 91.5mm |
| 认证 | EN62368, UL508, CE,CB,EX |
| 无故障工作时间 | >500,000 hrs |
| 重量 | 0.4kg |

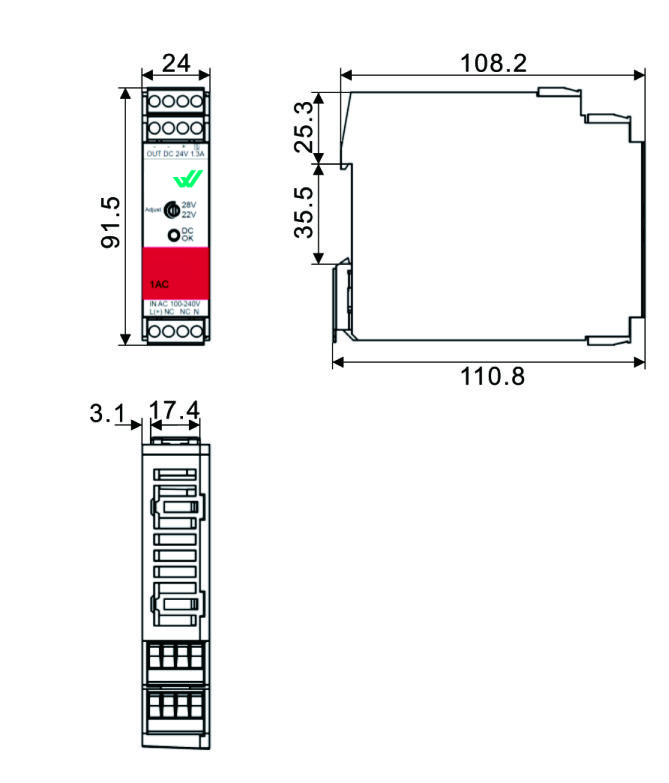

DIMENSIONS
DIMENSIONS
