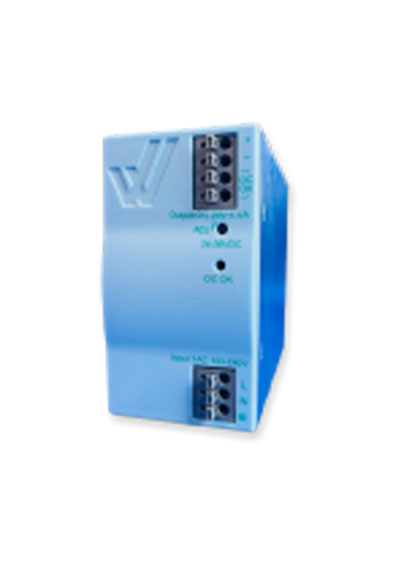

Product
WAT-2120-00 / WAT -2120-01 / WAT-2120-02 / WAT-2120-03 / WAT-2120-04
description：PSU 30W / 45W / 65W / 100W / 130W
efficiency：>89% >90% >90% >90% >91%
temperature：–25 °C to 70 °C
output：DC 24-30V Adjustable
input：AC 90 - 264V
PRODUCT FEATURES
PRODUCT FEATURES
Wide range AC input for various supply system
Reinforced Insutdown
Over current protection (Auto - recovery)
High efficiency
Metal Chassis
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-2120-00 / 01 / 02 / 03 / 04 |
| Type | PSU30W / 45W / 65W / 100W / 130W |
| Nominal Input voltage | AC 100V --- 240V |
| Extended Input Voltage Range | AC 90V ---- 264V |
| Max Input Current | <0.6A /<1A < 1.3A< 2A< 3A |
| Efficiency | >89% / >90% / >90% />90% />91% |
| Nominal Output voltage | DC 24V, SELV |
Extended Output Voltage Range |
DC 24-30V Adjustable |
| Output current | 1.25A / 1.875A /2.71A / 4.2A / 5.42A |
| Output power | 30W / 45W / 65W / 100W / 130W |
| Singnaling | LED 1 * green |
| Operation temperature range | -25°C to 70°C |
| Dimensions ( D x Wx H ) |
102X23X80mm / 103x30x80mm / 110x36x92mm / 110x50x92mm / 110x50x92mm |
| Material | Metal cover |
| MTBF | >500,000 hrs |
| Weight | 185g/ 215g / 270g / 390g / 400g |

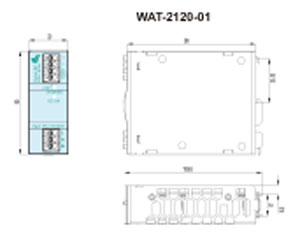

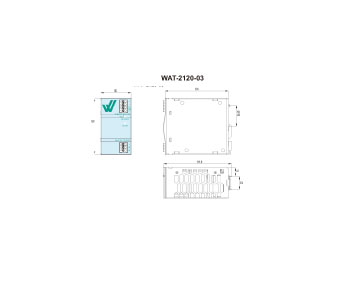

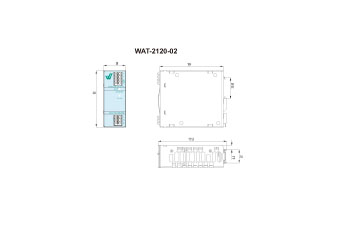

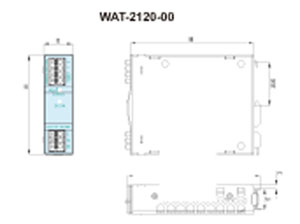

DIMENSIONS
DIMENSIONS
