Product
WAT-1003-01
description：1AC 24DC 5.4A
efficiency：＞85%
temperature：–25 °C to 70 °C
output：22 -28Vac (Adjustable)
input：85Vac -264 Vac
PRODUCT FEATURES
PRODUCT FEATURES
1-Phase switching mode power supply|Compact size|Slim design with metal chassis
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-1003-01 |
| Type | 1AC/24DC/5.4A |
| Inout voltage | 85Vac --264 Vac |
Input frequency |
50-60 Hz |
| Input current | 1.1A @ 230Vac 0.9A @ 114Vac |
| Efficiency | >85% |
| Output voltage | 22-28 Vdc (adjustable) |
| Output current | 5.4A |
| Output power | 130W |
|
Over current protection Output Overvoltage protection |
是 |
| Operating temperature range | -25°C to 70°C (>50° C derating 2.5% / k) |
| Size (D x W x H) | 101x 50x 30mm |
| Approval | EN62368, UL / cUL 62368, IEC 62368 CB Report |
| MTBF | >500,000 hrs |
| Weight | 0.2kg |

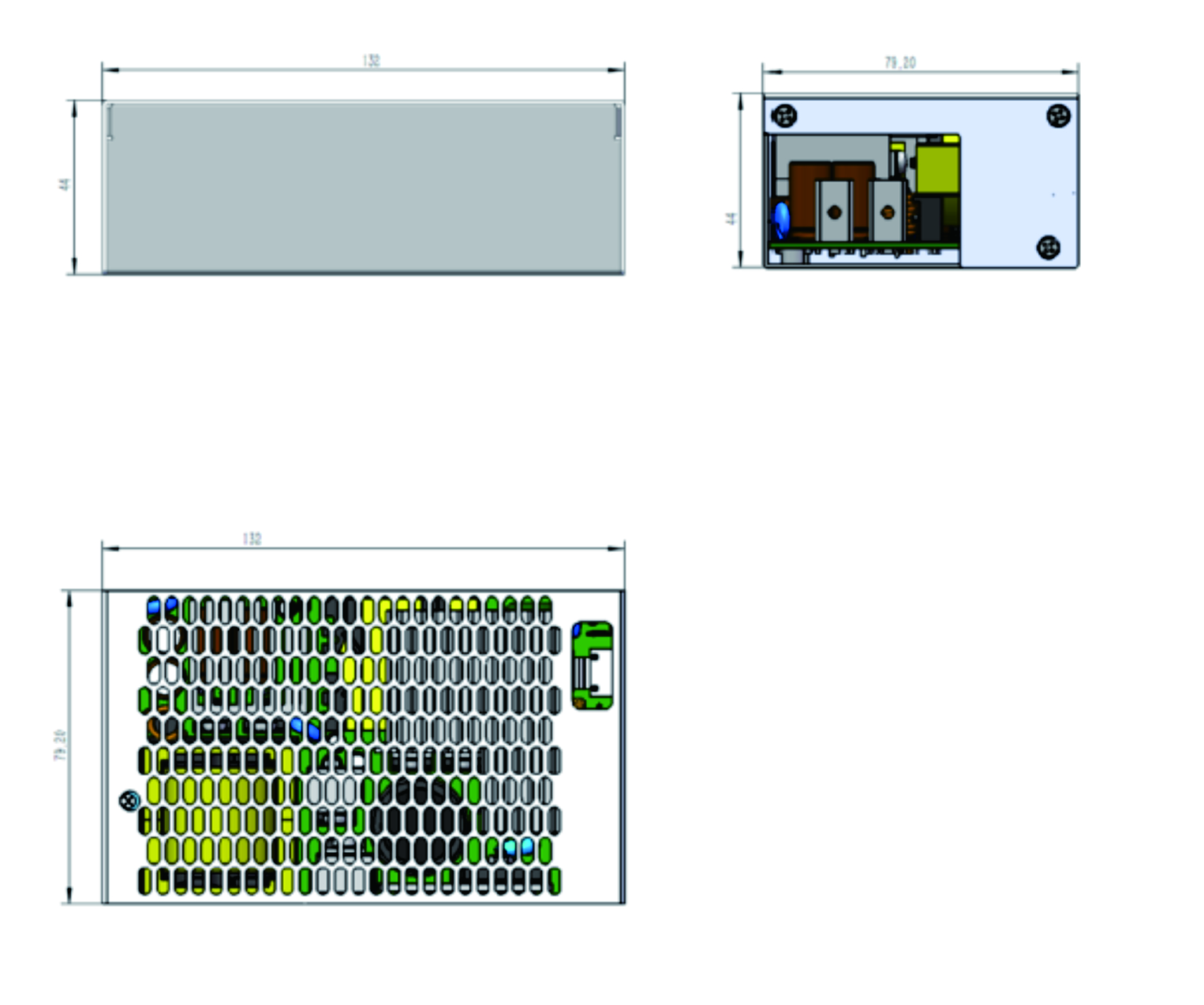

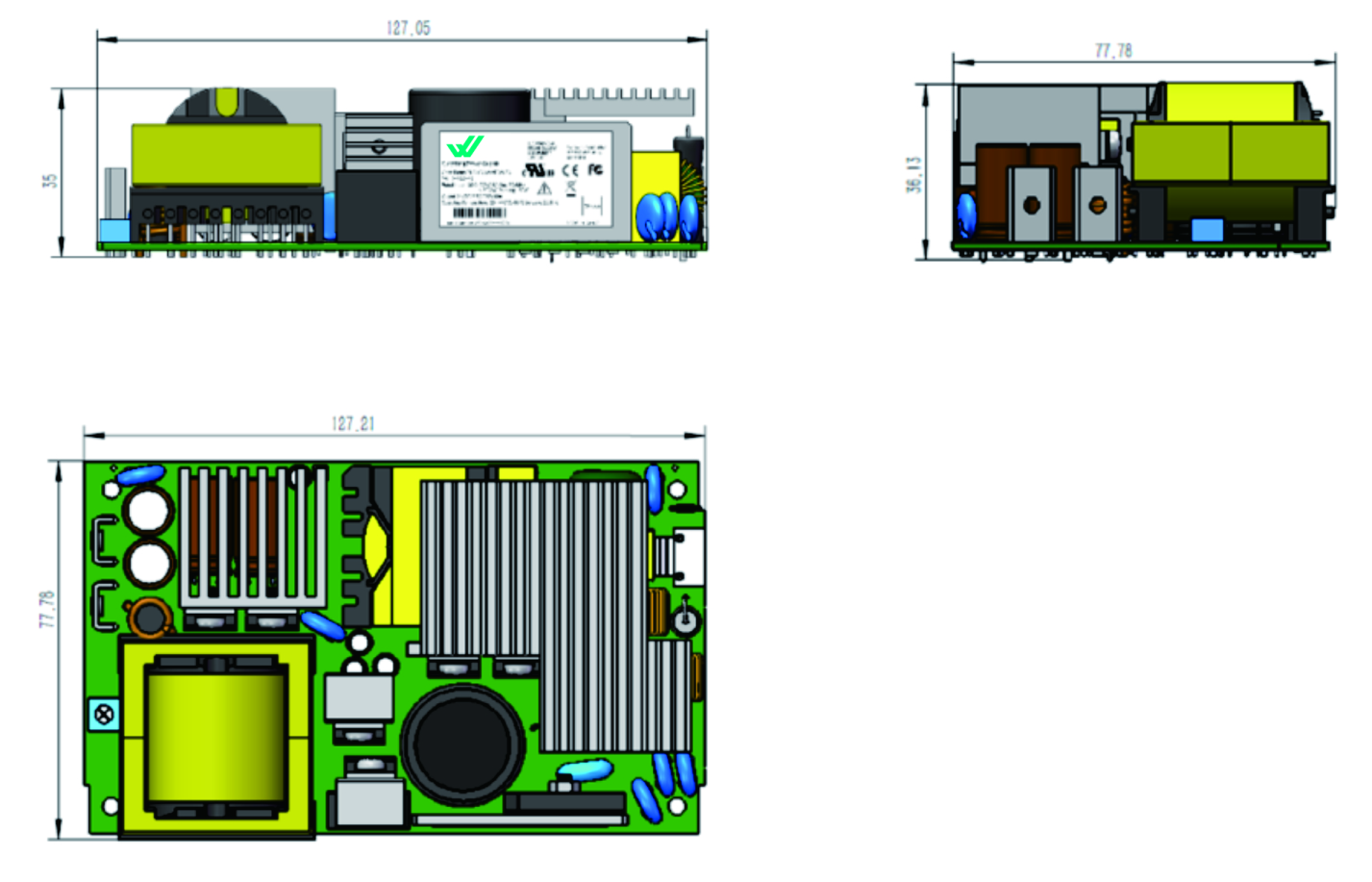

DIMENSIONS
DIMENSIONS
