Product

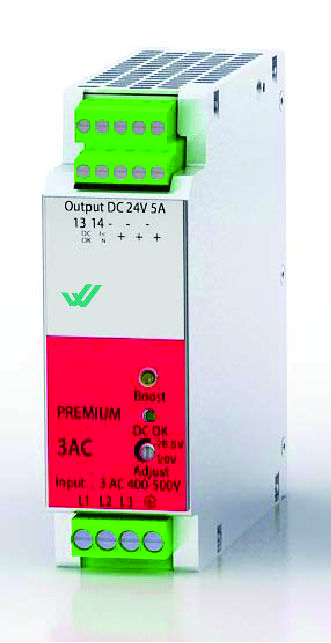

WAT-0302-01
description：3AC 24DC 5A
efficiency：>90%
temperature：–25 °C to 70 °C
output：20-28 .5Vdc
input：3*320-575Vac
PRODUCT FEATURES
PRODUCT FEATURES
3-Phase Din Rail Switch Mode Power Supply
efficiency >90%
Wide temperature range -25°C 到 70°C
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0302-01 |
| Type | 3AC/24DC/5A |
| Input voltage |
Rated: 3*400Vac -500Vac Range: 3*320Vac-575Vac (＜360Vac Derating 0.5%/v) |
| Input frequency | 45-65Hz |
| Standby power | <10W |
| Efficiency | >90% |
| Output voltage | 20-28.5Vac (adjustable) |
| Output current | 5A |
| Output power | 120W |
| Singnaling | DC OK signal, LED, Power Boost |
| Operation temperature range | -25°C to 70°C (>60° C derating 2.5% k) |
| Dimensions ( D x Wx H ) | 125x 40 x 130mm |
| Approvals | EN62368, UL508,CE,CB,Ex,cUL,cURus |
| MTBF(40deg C) | >500,000 hrs |
| Weight | 1.1kg |

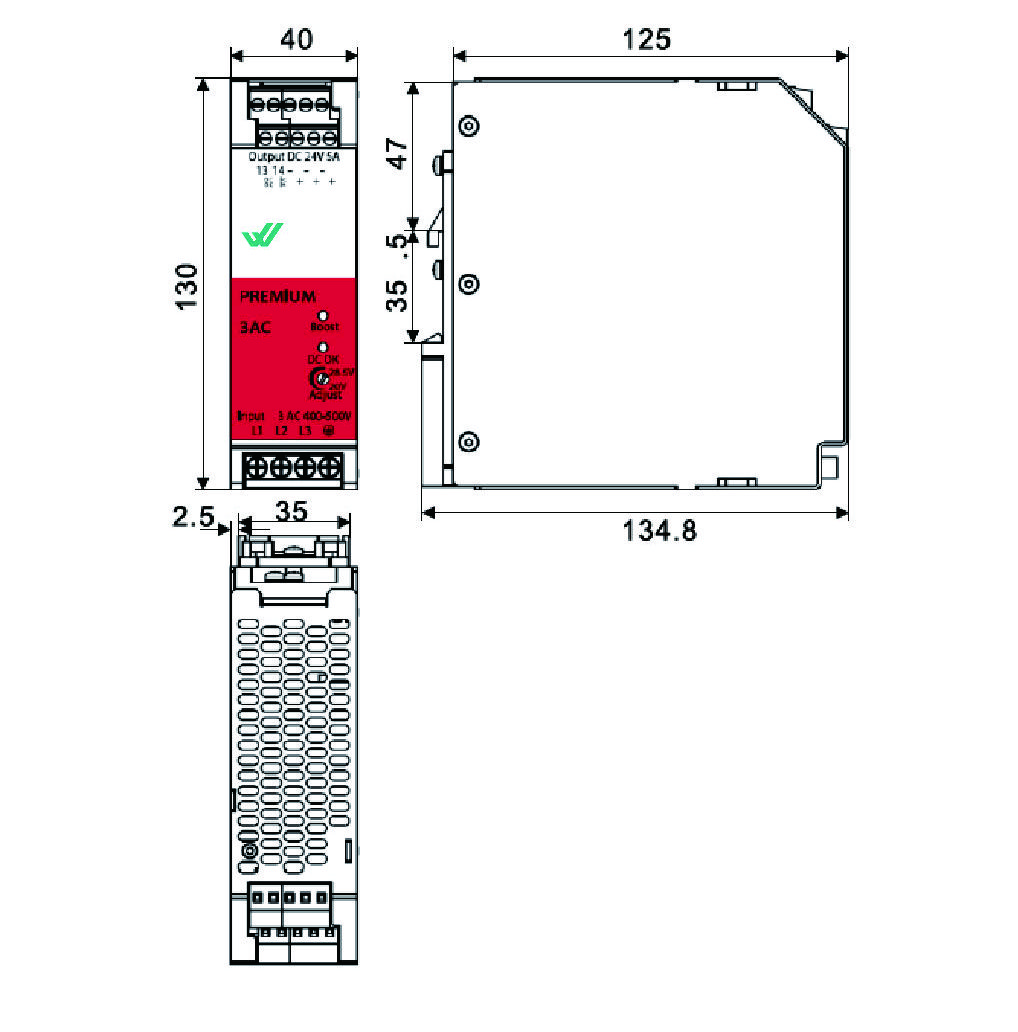

DIMENSIONS
DIMENSIONS
