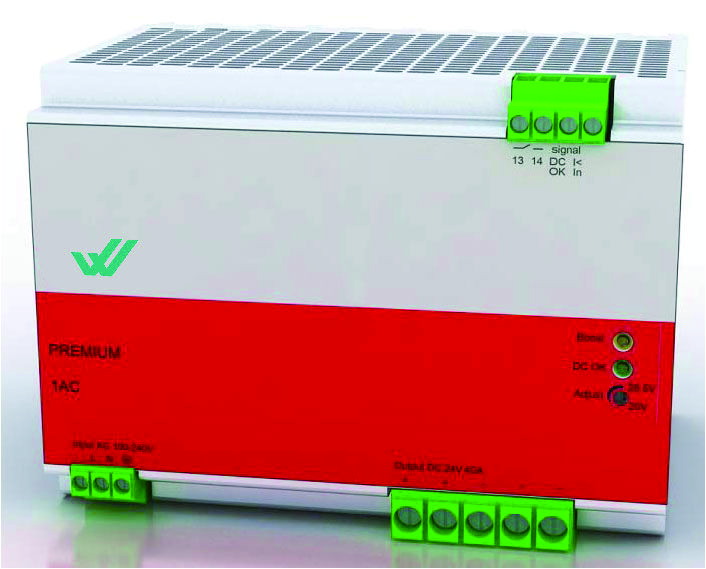

Product
WAT-0001-13
description：1AC 24DC 40A
efficiency：>90%
temperature：–25 °C to 70 °C
output：20-28.5 Vdc
input：99-264 Vac
PRODUCT FEATURES
PRODUCT FEATURES
单相开关电源
体积小
效率大于90%
温度范围-25°C到70°C
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0001-13 |
| 规格 | 1AC/24DC/40A |
| 输入电压 |
Rated: 110Vac -240Vac Range: 99Vac-264Vac |
| 输入频率 | 45-65Hz |
| 待机功率 | <10W |
| 效率 | >90% |
| 输出电压 |
20-28.5 Vdc (adjustable) >24V Constant Power |
| 输出电流 | 40A |
| 输出功率 | 960W |
| 信号指示 | DC OK signal, LED, Power Boost |
| 环境温度 | -25°C to 70°C (>50° C derating 2.5% k) |
| 尺寸 (深 x 宽 x H高) | 130 x 180x 130mm |
| 认证 | EN62368, UL508, CE,CB |
| 无故障工作时间 | >500,000 hrs |
| 重量 | 3.3kg |

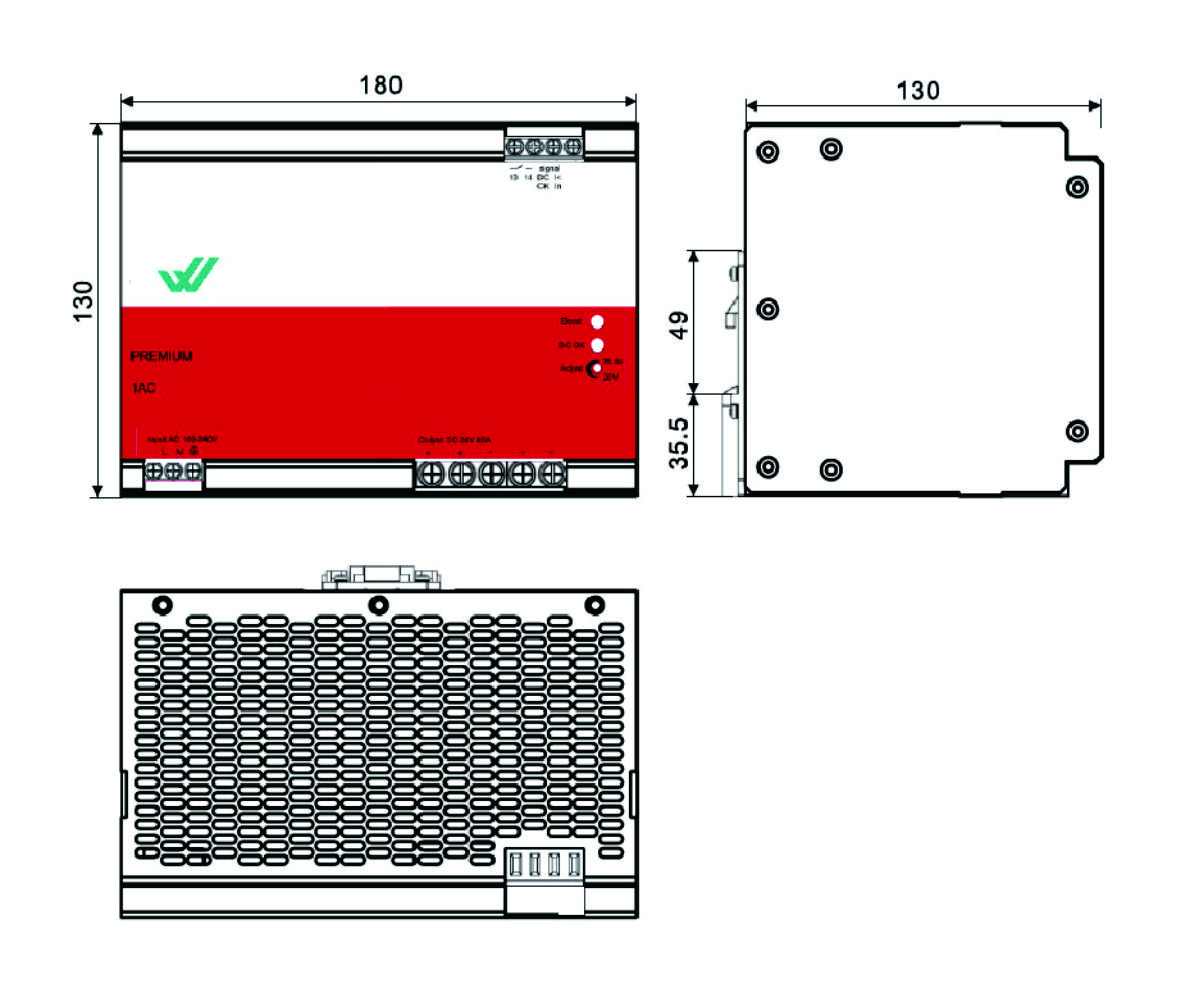

DIMENSIONS
DIMENSIONS
