Product

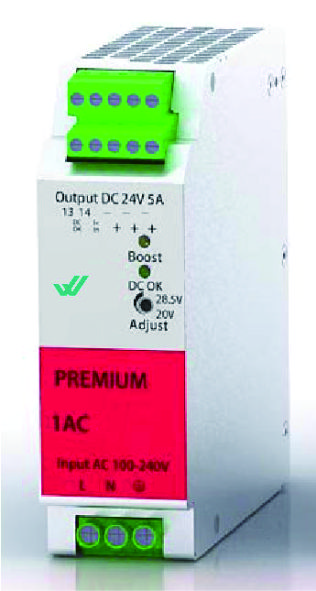

WAT-0001-02
description：1AC 24DC 5A
efficiency：>90%
temperature：–25 °C to 70 °C
output：20-28.5 Vdc
input：90-264 Vac
PRODUCT FEATURES
PRODUCT FEATURES
1-Phase Din Rail Switch Mode Power Supply
efficiency >90%
Wide temperature range -25°C 到 70°C
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0001-02 |
| Type | 1AC/24DC/5A |
| Input voltage |
Rated: 100Vac -240Vac Range: 90Vac-264Vac |
| Input frequency | 45-65Hz |
| Standby power | <5W |
| Efficiency | >90% |
| Output voltage |
20-28.5 Vac (adjustable) >24V Constant Power |
| Output current | 5A |
| Output power | 120W |
| Singnaling | DC OK signal, LED, Power Boost |
| Operation temperature range | -25°C to 70°C (>60° C derating 2.5% k) |
| Dimensions ( D x Wx H ) | 125 x 40 x 130mm |
| Approvals | EN62368, UL508,CE,CB,Ex |
| MTBF(40deg C) | >500,000 hrs |
| Weight | 0.8kg |

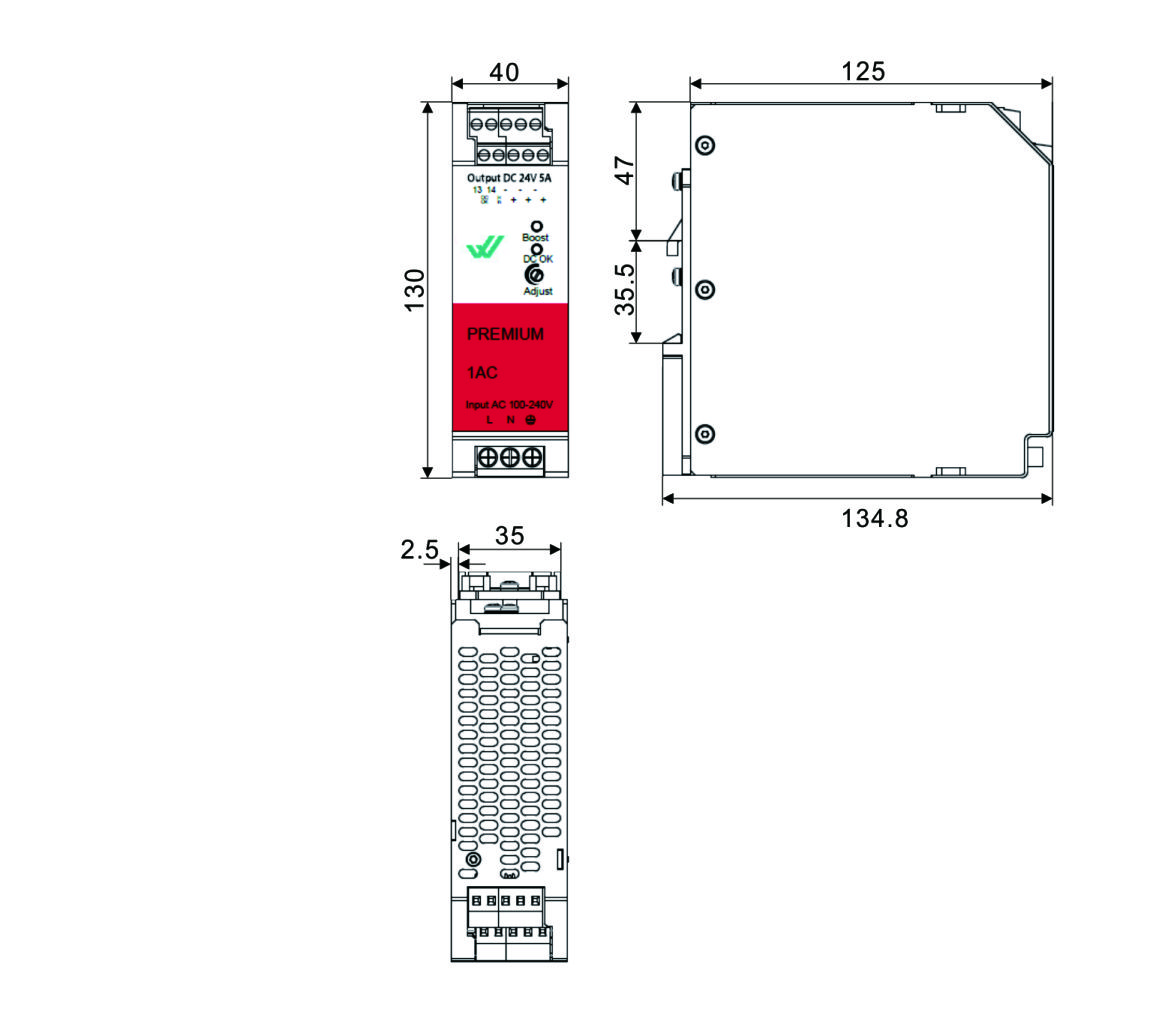

DIMENSIONS
DIMENSIONS
