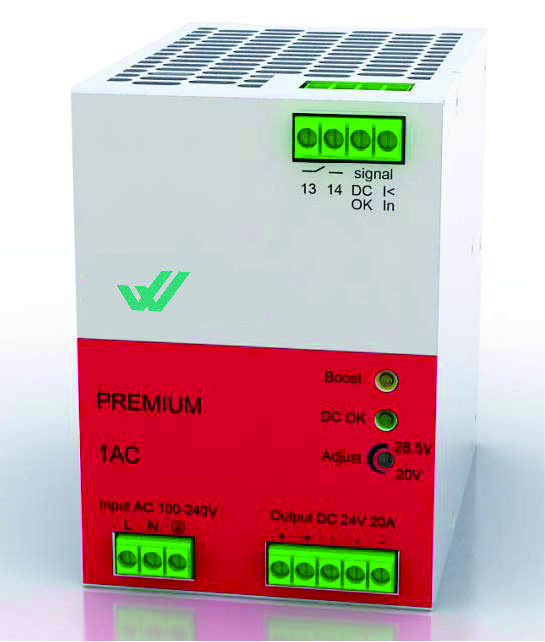

WAT-0001-11
description:1AC 24DC 20A

efficiency:>91%
temperature:–25 °C to 70 °C
output:20-28.5 Vdc
input:108-264 Vac
PRODUCT FEATURES
PRODUCT FEATURES

单相导轨式开关电源

效率大于91%

温度范围-25°C到70°C


TECHNICAL DATA
TECHNICAL DATA
Model WAT-0001-11
规格  1AC/24DC/20A
输入电压

Rated: 120Vac -240Vac

Range: 108Vac-264Vac

输入频率 45-65Hz
待机功率 <10W
效率 >88%
输出电压

20-28.5 Vdc (adjustable)

>24V Constant Power

输出电流 20A
输出功率 480W
信号指示 DC OK signal, LED, Power Boost
环境温度 -25°C  to 70°C (>50° C  derating 2.5% k)
尺寸 (深 x 宽 x H高) 135 x 90 x 130mm
认证 EN62368, UL508, CE,CB,EX
无故障工作时间 >500,000 hrs
重量 2.6kg

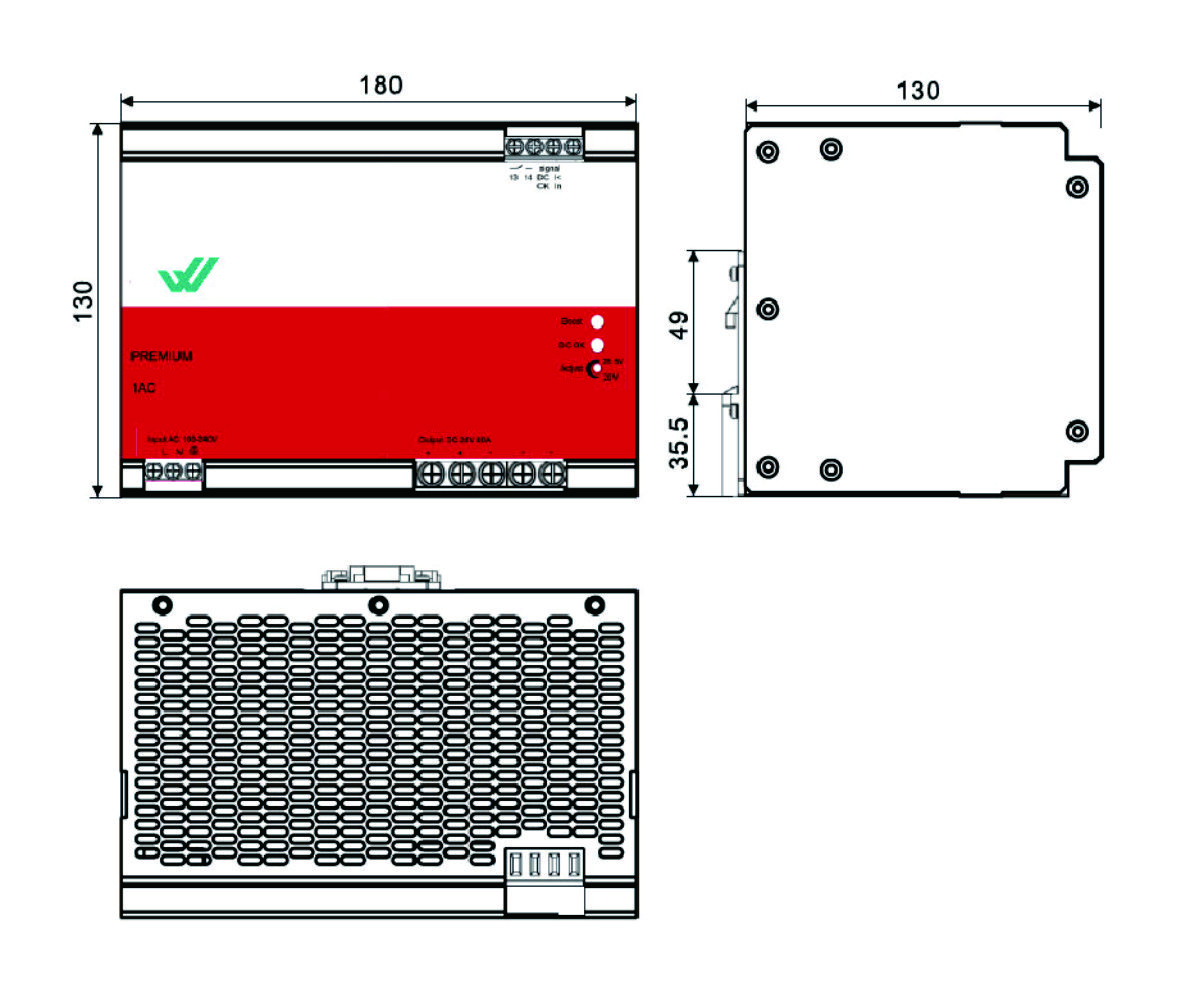

DIMENSIONS
DIMENSIONS
