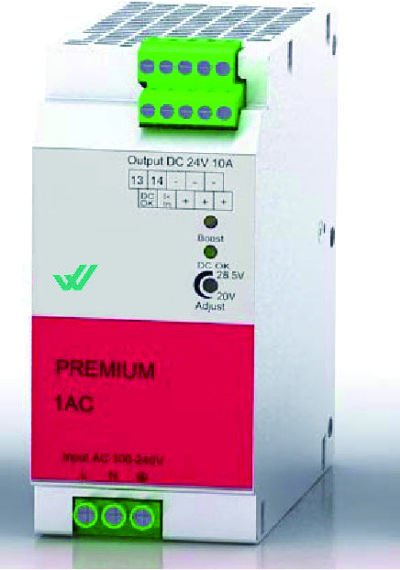

WAT-0001-03
description:1AC 24DC 10A

efficiency:>90%
temperature:–25 °C to 70 °C
output:20-28.5 Vdc
input:90-264 Vac
PRODUCT FEATURES
PRODUCT FEATURES

单相导轨式开关电源

体积小

效率大于90%

温度范围-25°C到70°C


TECHNICAL DATA
TECHNICAL DATA
Model WAT-0001-03
规格 1AC/24DC/10A
输入电压

Rated: 100Vac -240Vac

Range: 90Vac-264Vac

输入频率 45-65Hz
待机功率 <10W
效率 >90%
输出电压

20-28.5 Vdc (adjustable)

>24V Constant Power

输出电流 10A
输出功率 240W
信号指示 DC OK signal, LED, Power Boost
环境温度 -25°C  to 70°C (>50° C  derating 2.5% k)
尺寸 (深 x 宽 x H高) 125 x 60 x 130mm
认证 EN62368, UL508, CE,CB
无故障工作时间 >500,000 hrs
重量 1.45kg

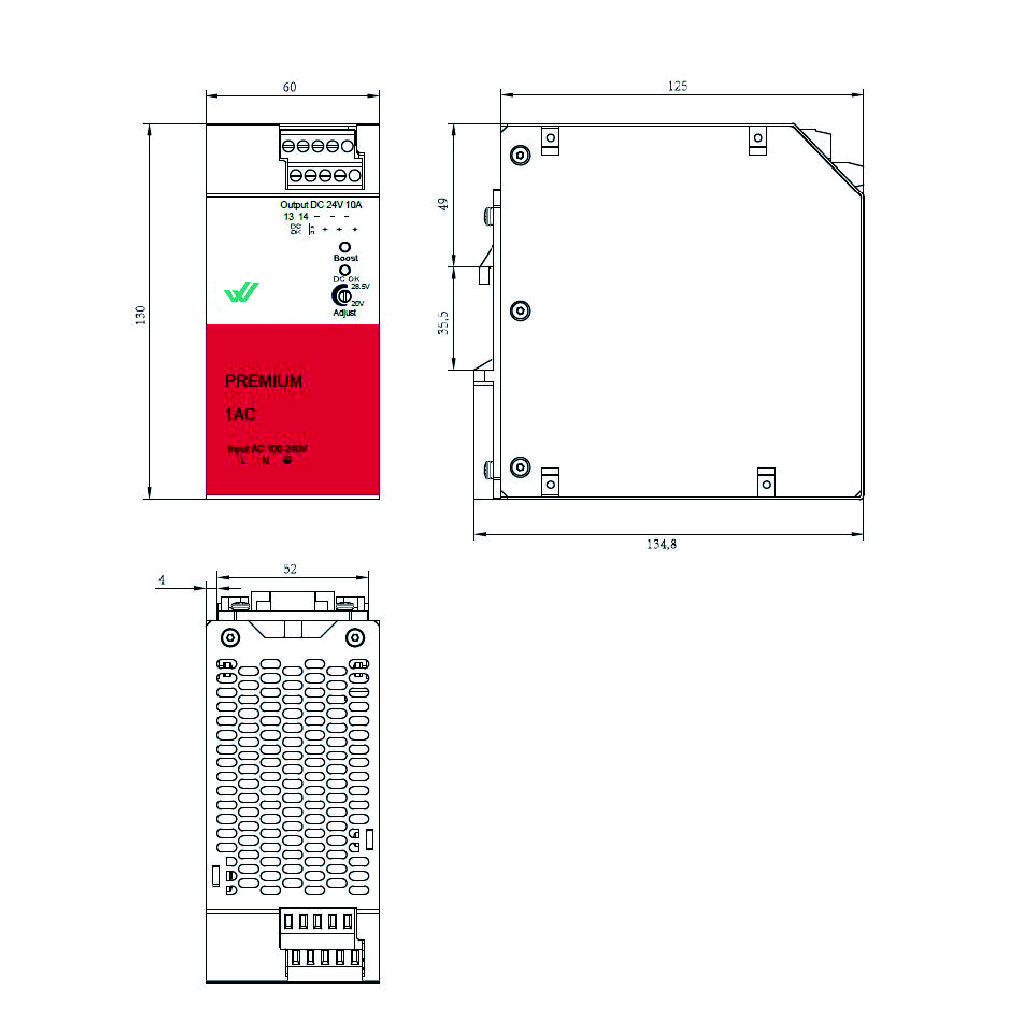

DIMENSIONS
DIMENSIONS
