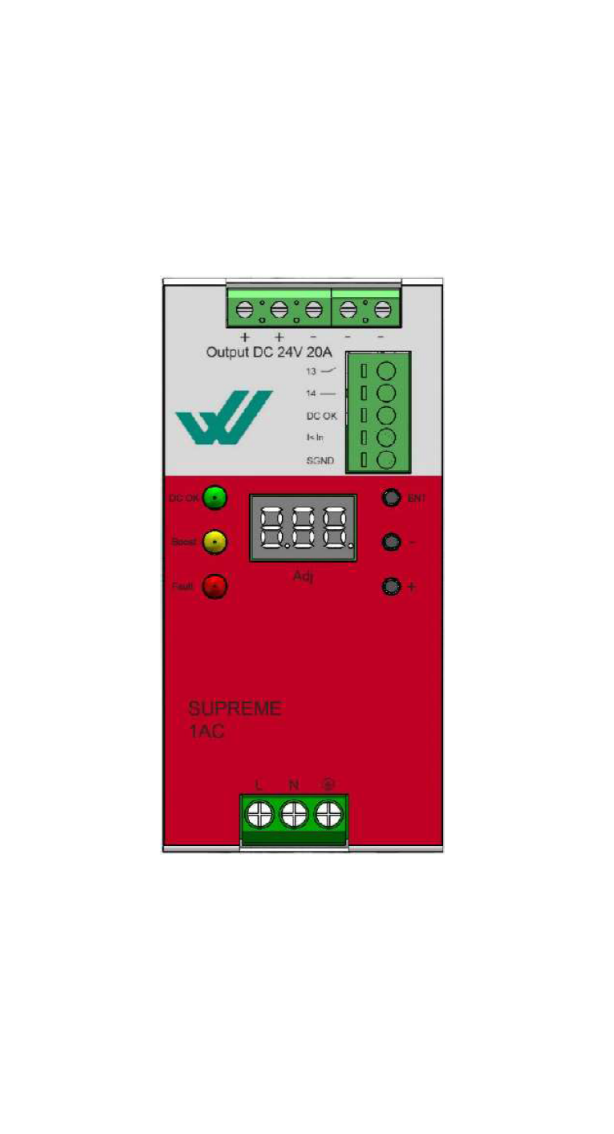

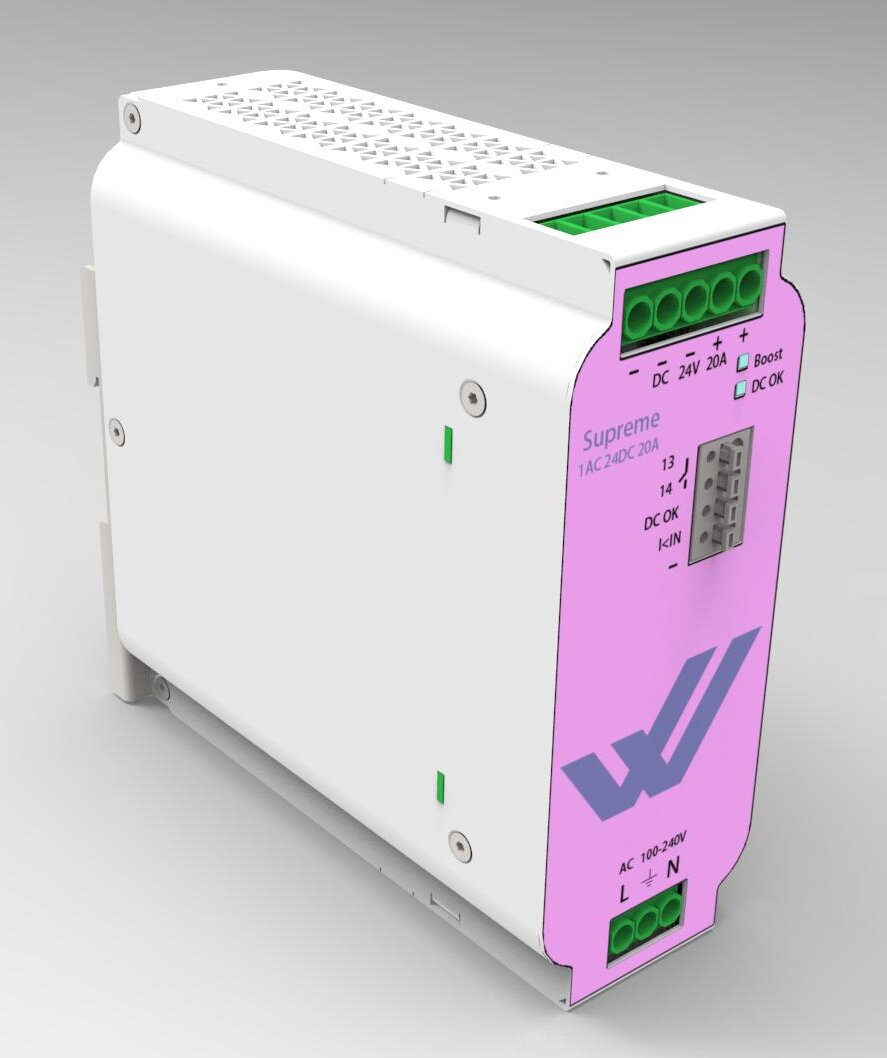

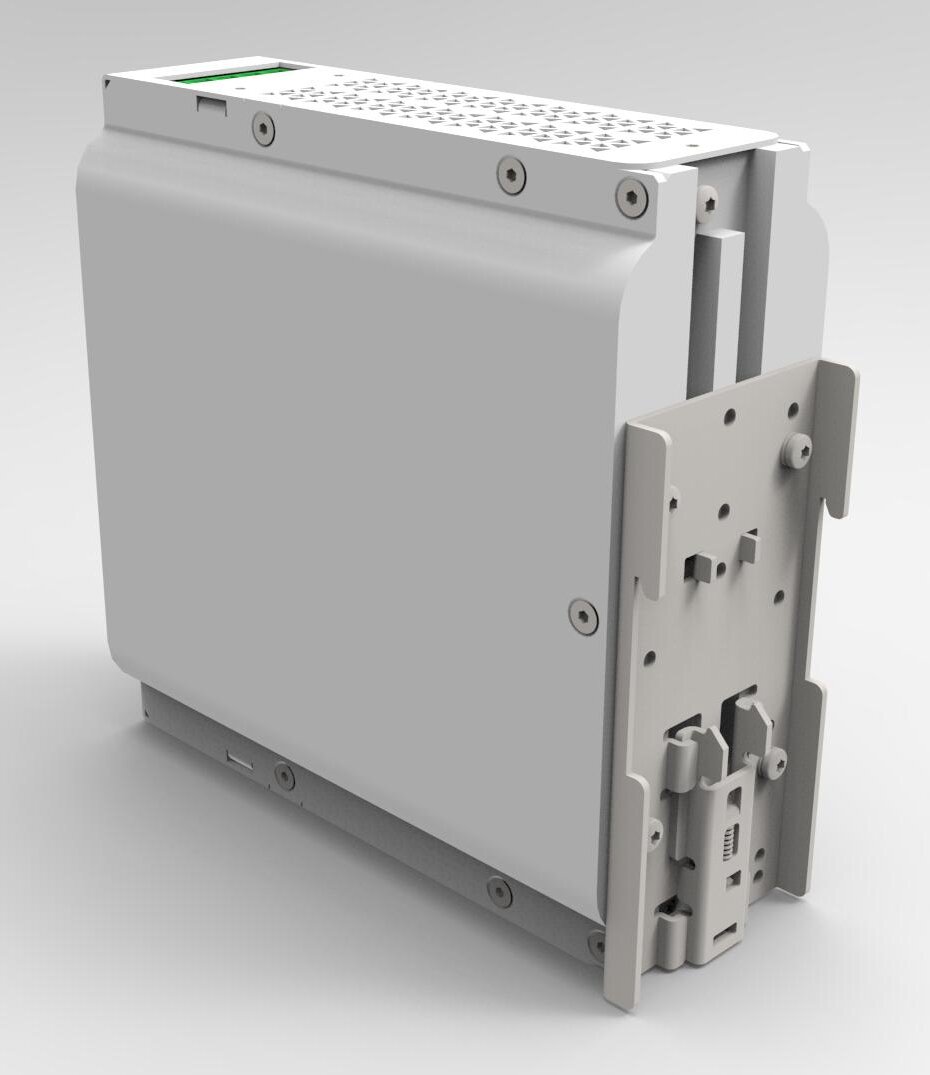

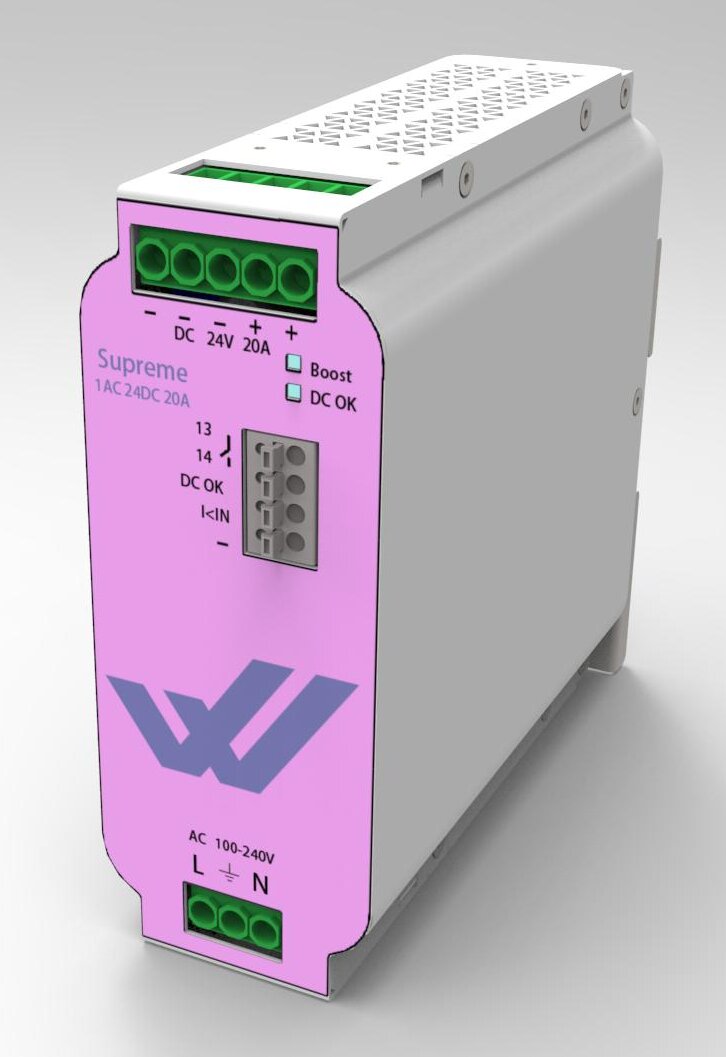

Product
WAT-0003-11
description：1AC 24DC 20A
efficiency：>95%
temperature：–25 °C to 70 °C
output：20-28 Vdc
input：3*320-552Vac
PRODUCT FEATURES
PRODUCT FEATURES
1 Phase swithching mode power supply
3-digit 7 segments LED
Wide operation temperature -40°C to 70°C
Max efficiency >97% @ 85% output power
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0003-11 |
| Type | 1AC/24DC/20A |
| Input voltage |
Rated: 100Vac - 240Vac Range: 90Vac - 264Vac |
| Input frequency | 50 / 60 Hz |
| Standby power | <1 W |
| Efficiency | >95% (97% Max) |
| Output voltage |
20-28Vac (adjustable) >24V Constant Power |
| Output current | 20A |
| Output power | 480W |
| Singnaling | DC OK signal, LED,Power boost |
| Operation temperature range | -40°C to 70°C |
| Dimensions ( D x Wx H ) | 143x 62 x 129mm |
| Approvals | |
| MTBF(40deg C) | >500,000 hrs |
| Weight |

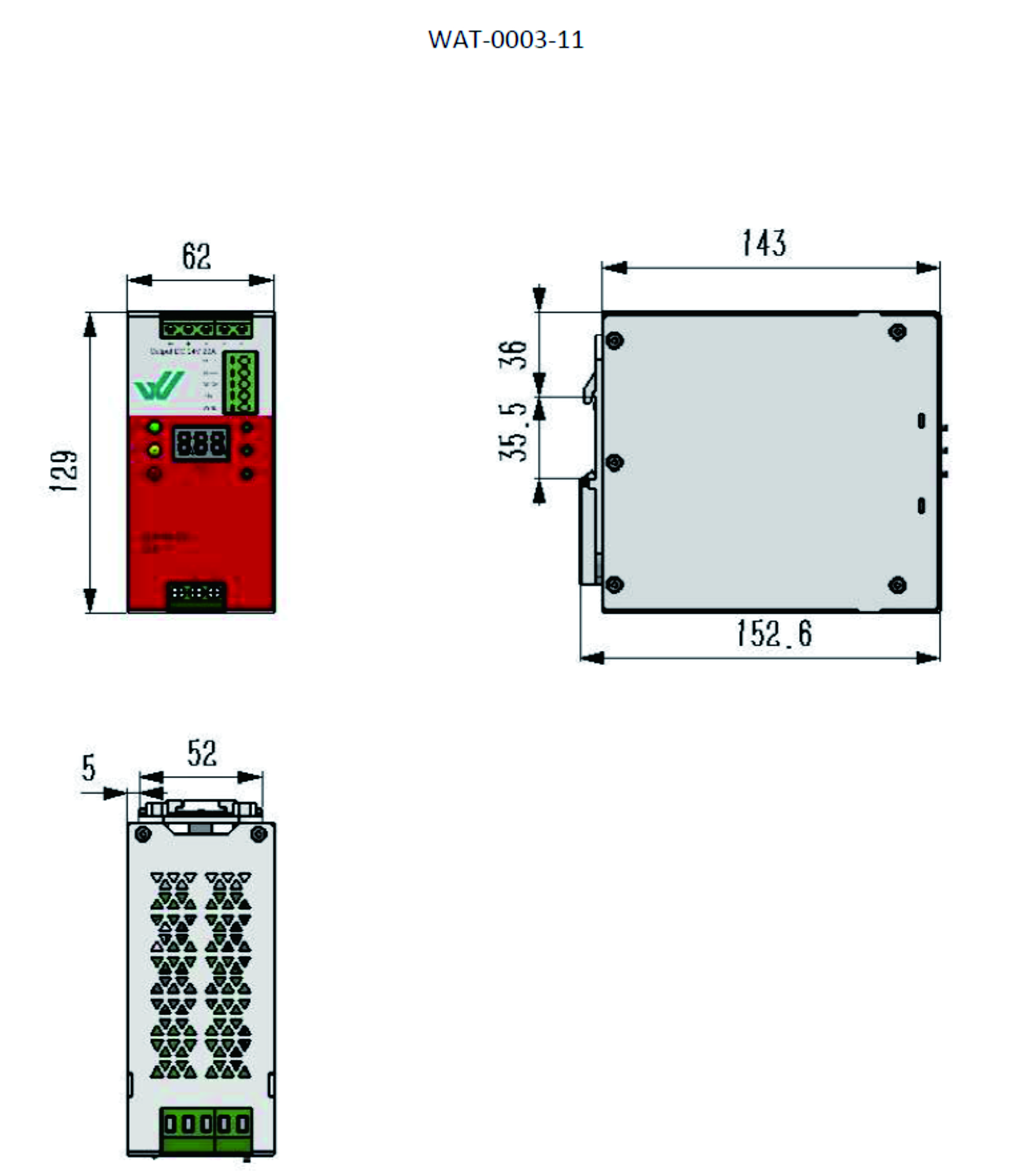

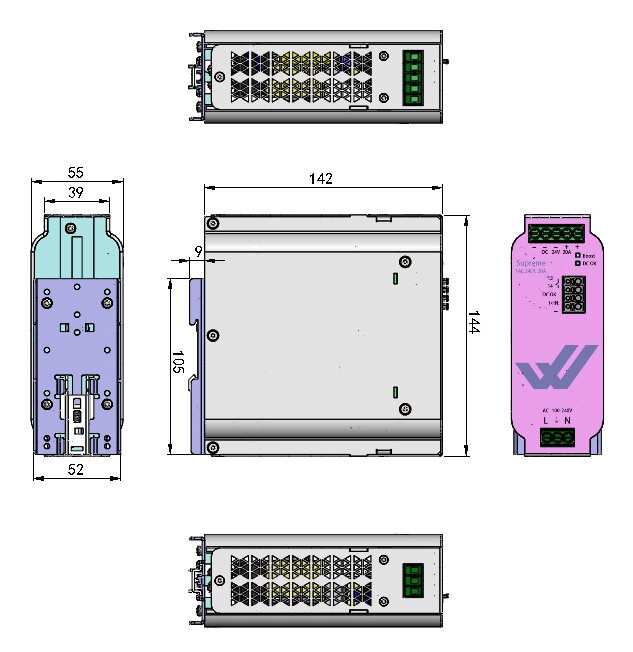

DIMENSIONS
DIMENSIONS
