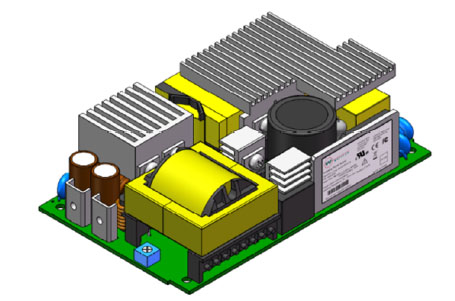

Product
WAT-0402-03
description：1AC 24DC 8.3A
efficiency：＞91%
temperature：–25 °C to 70 °C
output：22 -28Vac (Adjustable)
input：85Vac -264 Vac
PRODUCT FEATURES
PRODUCT FEATURES
1-Phase switching mode power supply|Compact size|Slim design with metal chassis
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0402-03 |
| Type | 1AC/24DC/8.3A |
| Inout voltage | 85Vac --264 Vac |
Input frequency |
50-60 Hz |
| Input current | 1.0A @ 230Vac 2.1A @ 114Vac |
| Efficiency | >91%@230V / >88% @110V |
| Output voltage | 23-25 Vdc (adjustable) |
| Output current | 8.3A |
| Output power | 200W |
|
Over current protection Output Overvoltage protection |
是 |
| Operating temperature range | -25°C to 70°C (>50° C derating 2.5% / k) |
| Size (D x W x H) | 127x 77x 36 mm |
| Approval | EN62368, UL / cUL 62368, IEC 62368 CB Report |
| MTBF | >500,000 hrs |
| Weight | 0.4kg |

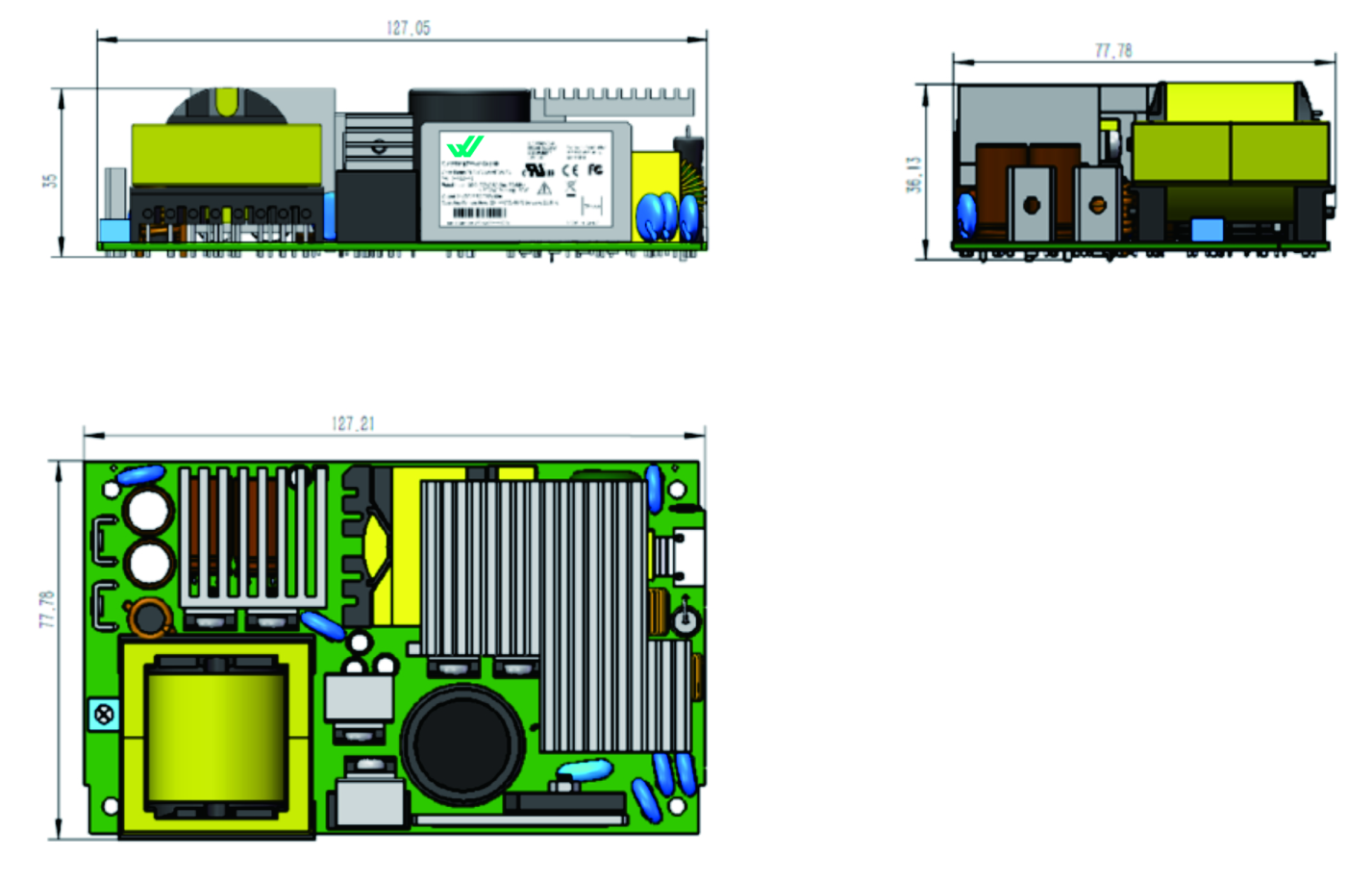

DIMENSIONS
DIMENSIONS
