Product
WAT-1120-00 / WAT -1120-01 / WAT-1120-02 / WAT-1120-03
description：PSU 30W / 45W / 65W / 100W / 130W
efficiency：>89% / >90% > 90% / >90% / 91%
temperature：–25 °C to 70 °C
output：DC 24-30V Adjustable
input：AC 90 - 264V
PRODUCT FEATURES
PRODUCT FEATURES
Wide range AC input for various supply system
Reinforced Insutdown
Over current protection (Auto - recovery)
High efficiency
Plastic Chassis
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-1120-00 / 01 / 02 / 03 |
| Type | PSU30W / 45W / 100W / 130W |
| Nominal Input voltage | AC 100V --- 240V |
| Extended Input Voltage Range | AC 90V ---- 264V |
| Max Input Current | <0.6A /<1A < 1.3A< 2A< 3A |
| Efficiency | >89% / >90% / >90% />90% />90% |
| Nominal Output voltage | DC 24V, SELV |
Extended Output Voltage Range |
DC 24-30V Adjustable |
| Output current | 1.25A / 1.875A /2.71A / 4.2A / 5.42A |
| Output power | 30W / 45W / 65W / 100W / 130W |
| Singnaling | LED 1 * green |
| Operation temperature range | -25°C to 70°C; Start @25°C |
| Dimensions ( D x Wx H ) |
102X23X80mm / 103x30x80mm / 110x36x92mm / 110x50x92mm / 110x50x92mm |
| Material | Plastic cover |
| MTBF | >500,000 hrs |
| Weight | 135g/ 190g / 255g / 370g /380g |

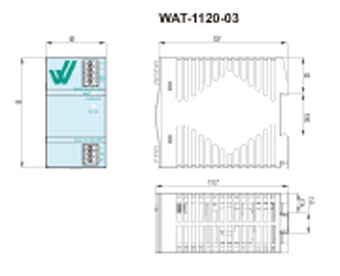

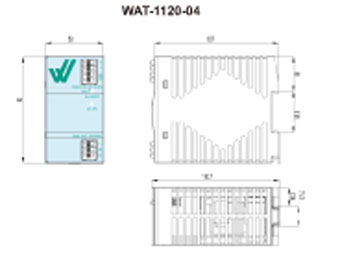

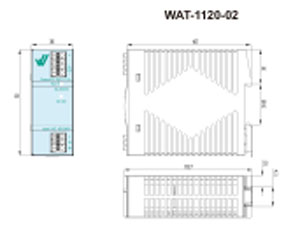

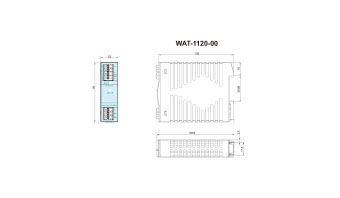

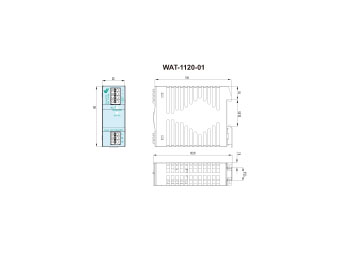

DIMENSIONS
DIMENSIONS
