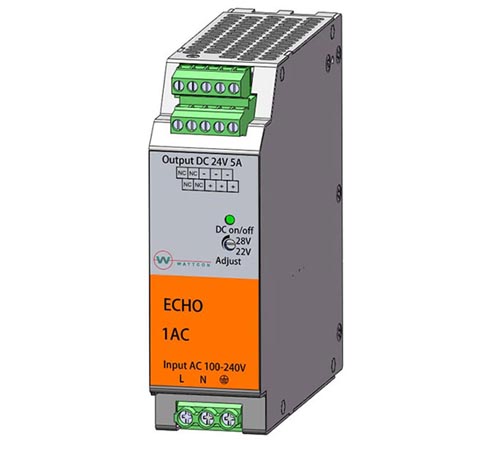

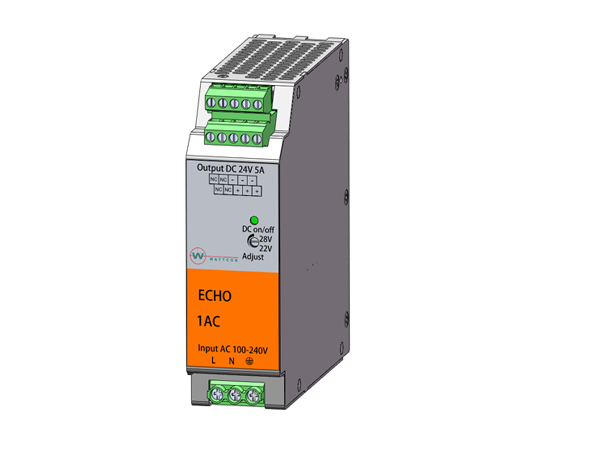

WAT-0002-02
description:1AC 24DC 5A

efficiency:>81%
temperature:–25 °C to 70 °C
output:22-28 Vdc
input:90-264Vac
PRODUCT FEATURES
PRODUCT FEATURES

单相开关电源

效率大于81%

温度范围-25°C到70°C


TECHNICAL DATA
TECHNICAL DATA
Model WAT-0002-02
规格  1AC/24DC/5A
输入电压

Rated: 100Vac -240Vac

Range: 90Vac-264Vac

输入频率 50/60Hz
待机功率 <5W
效率 >85%
输出电压

22-28 Vdc (adjustable)

输出电流 5A
输出功率 120W
信号指示 Powe  OK LED
环境温度 -25°C  to 70°C (>60° C  derating 2.5% k)
尺寸 (深 x 宽 x H高) 125x 40 x 130mm
认证 EN62368, UL508, CE,CB,cURus,EN60950
无故障工作时间 >480,000 hrs
重量 0.7kg


DIMENSIONS
DIMENSIONS
