Product

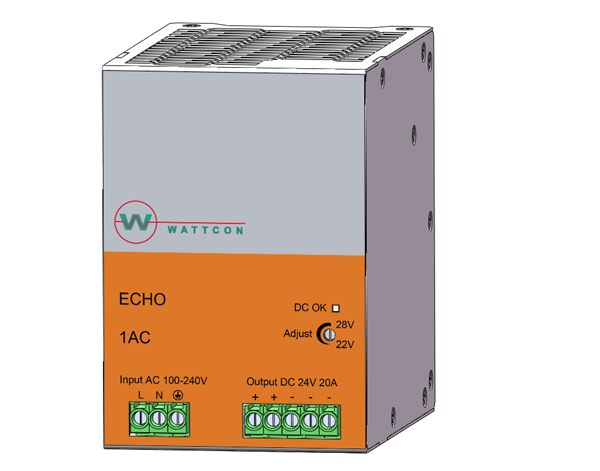

WAT-0002-04
description：1AC 24DC 20A
efficiency：>81%
temperature：–25 °C to 70 °C
output：22-28 Vdc
input：90-264Vac
PRODUCT FEATURES
PRODUCT FEATURES
单相开关电源
效率大于81%
温度范围-25°C到70°C
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0002-04 |
| 规格 | 1AC/24DC/20A |
| 输入电压 |
Rated: 110Vac -240Vac Range: 90Vac-264Vac |
| 输入频率 | 50/60Hz |
| 待机功率 | <10W |
| 效率 | >81% |
| 输出电压 | 22-28 Vdc (adjustable) |
| 输出电流 | 20A |
| 输出功率 | 480W |
| 信号指示 | Powe OK LED |
| 环境温度 | -25°C to 70°C (>50° C derating 2.5% k) |
| 尺寸 (深 x 宽 x H高) | 135x 115 x 130mm |
| 认证 | EN62368, UL508, CE,CB,cURus，EN60950 |
| 无故障工作时间 | >480,000 hrs |
| 重量 | 2.5kg |
DIMENSIONS
DIMENSIONS
